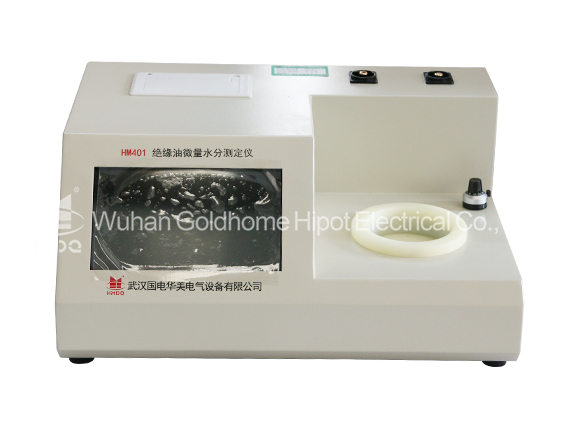

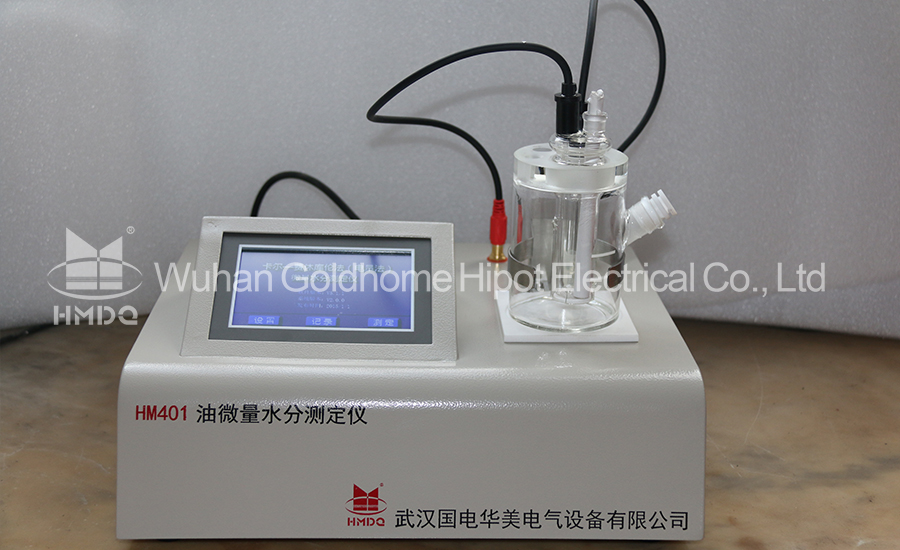

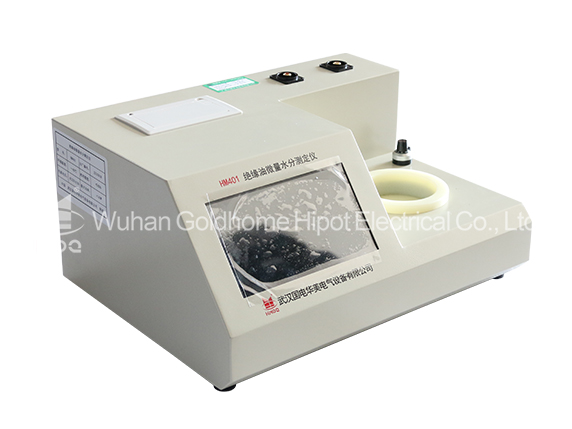

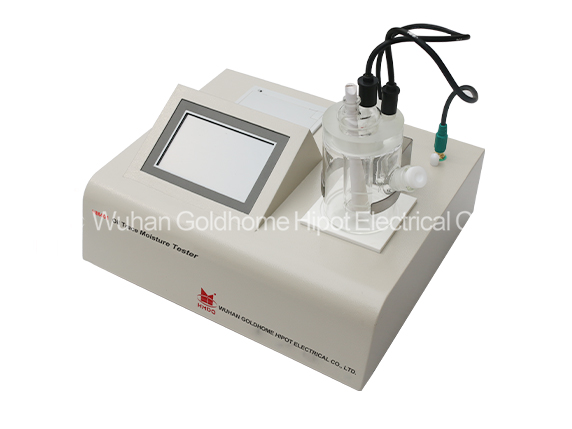

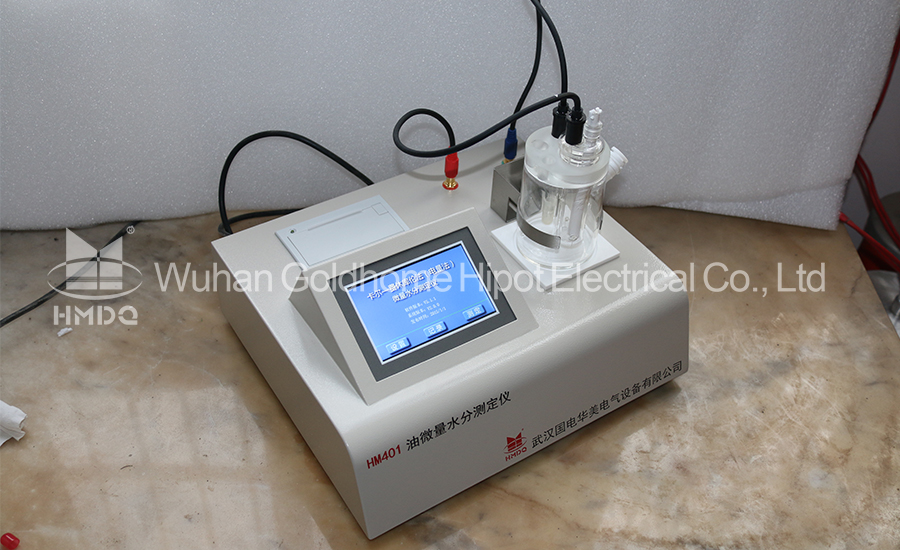

HM401 Automatic Transformer Moisture Test Equipment
Applications:
Automatic Transformer Moisture Test Equipment it is used to determine trace moisture in liquids, solids and gases, and is widely used in petroleum, chemical industry, electric power, railway, pesticide, medicine, environmental protection and other departments
- Strictly FAT Test
- Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Karl Fischer Coulomb titration is the most reliable method to detect trace moisture for different substances, which was utilized successfully by DH401 trace moisture titrator. What's important, this instrument is able to work more reliably and conveniently by using the most advanced control circuit and 32 bit embedded microcontroller processor as the master control core and utilizing embedded mini operating system. Character with fast analyzing speed, simple operation, high precision and strong automatism, the trace moisture titrator has been widely used in the industry of petroleum, chemical, power, railway, pesticide, medicine and environmental protection.
Features:
- Utilizing 32 bit embedded microcontroller processor as the master control core and embedded mini operating system.
- Be stable and reliable because of constant pressure detection,high precision and rapid measuring speed.
- Simple operation and convenient digital calculation due to color touch screen and full digital keyboard.
- Four calculation formulas are included, which can meet the different requirement of customer.
- Miniature thermal printer with time record make searching more convenient.
- New profile is designed according to the ergonomics.
- Creative and optimal operating software will bring a different touch experience for you.
Parameter:
- Titration method: Coulometric titration(Coulomb analysis)
- Display: Color LCD touch screen
- Electrolytic current control: 0~400mA automatic control
- Measurement scope: 0ug~200mg
- Sensitive valve: 0.1µg H2O
- Accuracy: 10µg~1000µg±3µg, More than 1mg but not greater than 0.3%
- Printer: Miniature thermal printer
- Power supply: 220V±10%,50Hz
- Power: <40W
- Ambient temperature: 5~40℃
- Ambient humidity: ≤ 85%
- External dimension: 340×295×155
- Weight: About 5.5kg
