Applications:

AC High-Voltage Test Transformer System(Oil Immersed Type) is to conduct AC High-Voltage Test tests on electrical equipment and components to confirm their insulation performance and withstand voltage capacity under rated power frequency voltage.

  • pictures Strictly FAT Test
  • pictures Third-party Calibration
  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

AC High-Voltage Test Transformer System(Oil Immersed Type) is to conduct AC High-Voltage Test tests on electrical equipment and components to confirm their insulation performance and withstand voltage capacity under rated power frequency voltage. This device can be used to detect various electrical equipment, such as transformers, insulators, switchgear, etc., to ensure that they will not experience breakdown or leakage under normal working conditions, ensuring the safe and reliable operation of the equipment.

Features:

  1. This series of insulated cylindrical high-voltage test transformers adopts a single frame iron core structure. The primary winding is wound around the iron core, and the high-voltage winding is outside. This coaxial arrangement effectively reduces magnetic leakage, thereby increasing the coupling between windings.
  2. Voltage, current, time, status information, and prompt information are displayed on a 10 inch large LCD screen, with clear and intuitive readings;
  3. Simple and clear operation, suitable for various application scenarios;
  4. Touch based operation, all functions can be preset in advance, improving the safety and reliability of the product;
  5. Status reminder function;
  6. Alarm function, closing alarm, 5-second buzzing alarm prompt; Abnormal voltage signal collection and buzzing alarm;
  7. Emergency stop function, during automatic control, this function can achieve an emergency stop for boosting or lowering pressure at any point;
  8. Automatic timing function. When in automatic control, when the voltage automatically rises to the set value, the equipment automatically starts timing. When the timing time is up, the equipment automatically reduces voltage and returns to zero position;
  9. Manual control mode, which is similar to the traditional electric lifting/lowering method. The lifting/lowering is controlled by touch keys, and the equipment automatically determines the upper/lower limit positions. High voltage overvoltage and low voltage current protection, high voltage overcurrent protection;
  10. Adopting a combination of hardware and software anti-interference technology, it has stable performance and strong anti-interference ability.

Parameter:

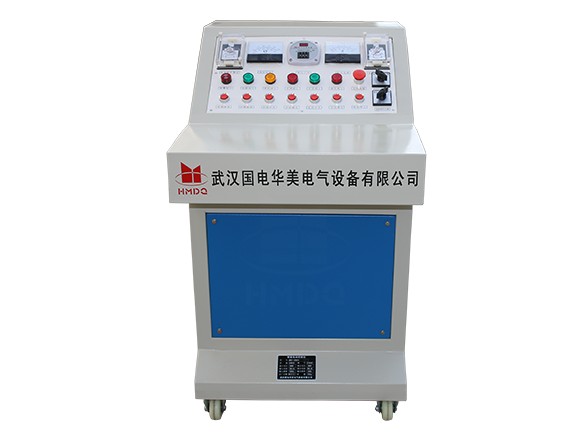

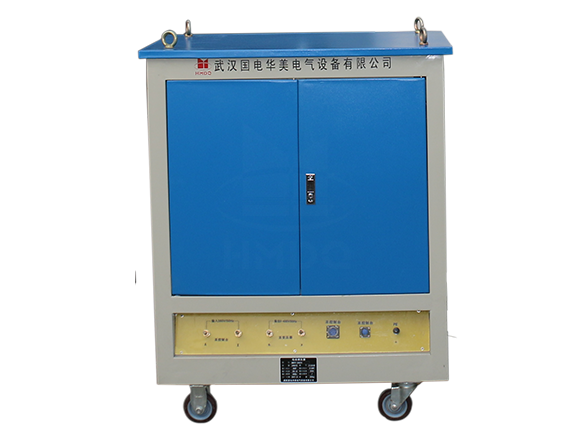

Electric voltage regulator
  1. Input voltage 380V/single-phase
  2. Output voltage:0-430V/single-phase
  3. External dimensions: 800 × 1200 × 1500

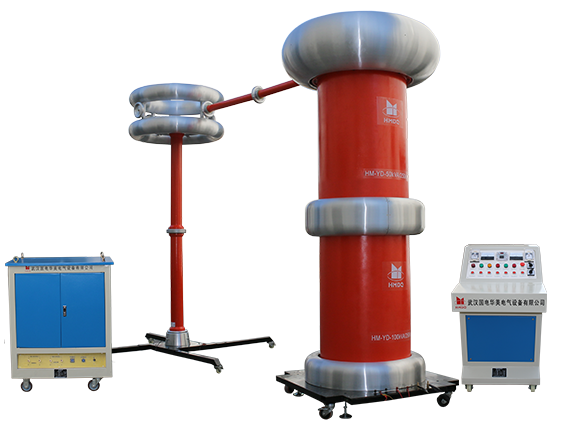

Cascade insulated cylindrical test transformer
  1. input voltage :0-400V
  2. Cascade output voltage: 0-250kV
  3. Cascade output current: 0.4A
  4. High voltage output voltage: 0-250kV
  5. High voltage output current :0.4A
  6. External dimensions: ф 980 × 1500
Insulated cylindrical test transformer
  1. input voltage :0-400V
  2. High voltage output voltage: 0-250kV
  3. High voltage output current :0.2A
  4. External dimensions :ф 980 × 1500
