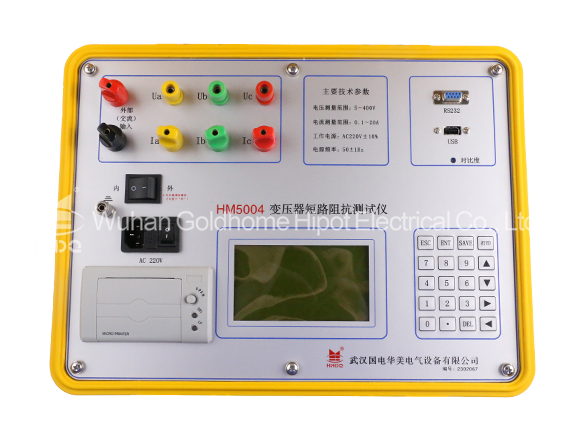

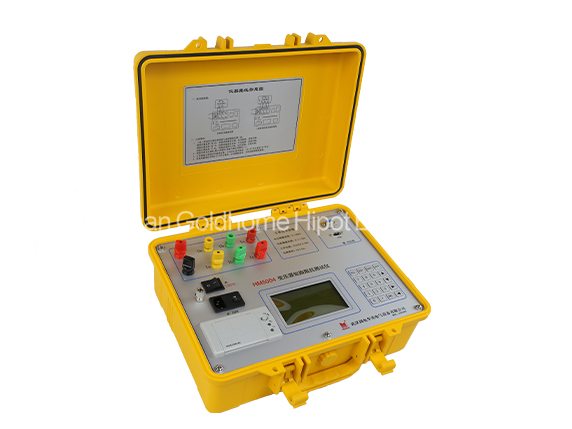

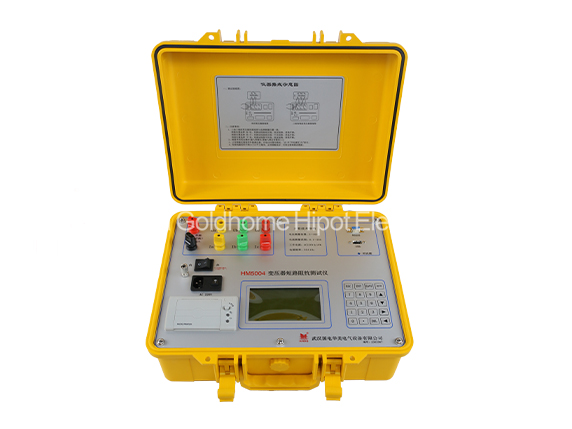

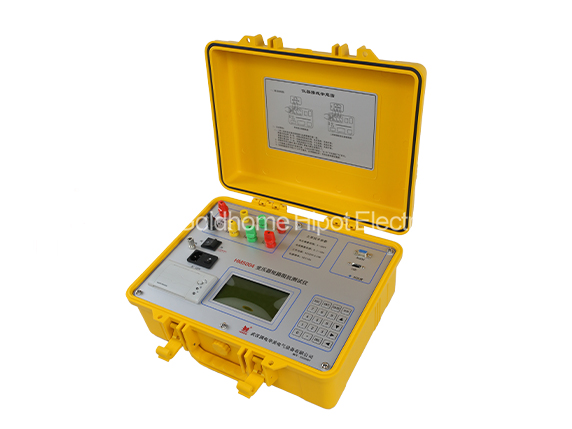

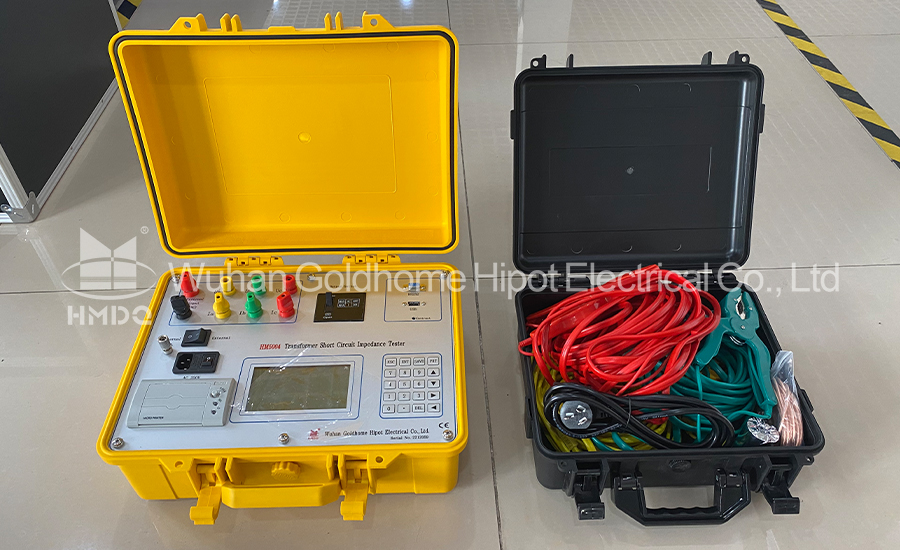

HM5004 Transformer LV short circuit measurement low voltage winding resistance short circuit impedan
Applications:
Transformer LV short circuit measurement low voltage winding resistance short circuit impedan it is the most direct way to identify whether the windings of the transformer are deformed after the impact of the short-circuit current in operation, or the mechanical force impact of the transformer during transportation and installation
- Strictly FAT Test
- Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Transformer LV Short-circuit Impedance Tester applies to LV load impedance test during delivery, overhaul, trial test and handover test of power transformers (single phase or three-phase).
It tests the short-circuit impedance (%) of power voltage on site and compares it with the value indicated on the nameplate or the factory default to find out any defects including but not limited to winding displacement or deformation due to currents from major failure during transformation, installation or operation following the delivery test. (The short circuit change shall be considered as significant if it exceeds ± 3% as specified in China International Conference on Electricity Distribution 2000 (“CICED 2000”)).

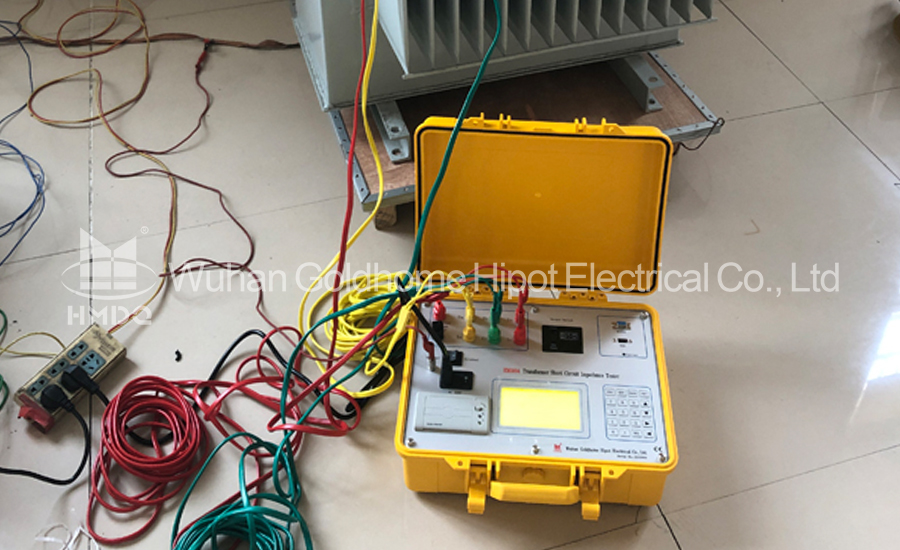

Transformer LV Short-circuit Impedance Tester is not provided with an external voltage regulator and adopts the primary connection mode. It begins the three-phase testing and calculates impedance error percentage automatically when the parameter is entered and provides intuitive results. This is a rapid tester which detects winding deformation of transformers on site.
It tests the short-circuit impedance (%) of power voltage on site and compares it with the value indicated on the nameplate or the factory default to find out any defects including but not limited to winding displacement or deformation due to currents from major failure during transformation, installation or operation following the delivery test. (The short circuit change shall be considered as significant if it exceeds ± 3% as specified in China International Conference on Electricity Distribution 2000 (“CICED 2000”)).
Transformer LV Short-circuit Impedance Tester is not provided with an external voltage regulator and adopts the primary connection mode. It begins the three-phase testing and calculates impedance error percentage automatically when the parameter is entered and provides intuitive results. This is a rapid tester which detects winding deformation of transformers on site.
Features:
- The tester is supplied with AC220V low voltage power to provide current for AB, BC and CA high voltage windings of the transformer automatically; collects data simultaneously and; calculates impedance error percentage automatically with intuitive testing results;
- The tester completes the three-phase testing automatically in the primary connection mode other then inversed connection with the testing wire;
- The tester allows either single phase testing or three-phase testing both manually and automatically;
- The tester achieves output current limit applicable to test item with any impedance;
- The test item can be measured without an external voltage regulator;
- The tester functions in measuring zero sequence impedance;
- The tester functions in measuring inductance;

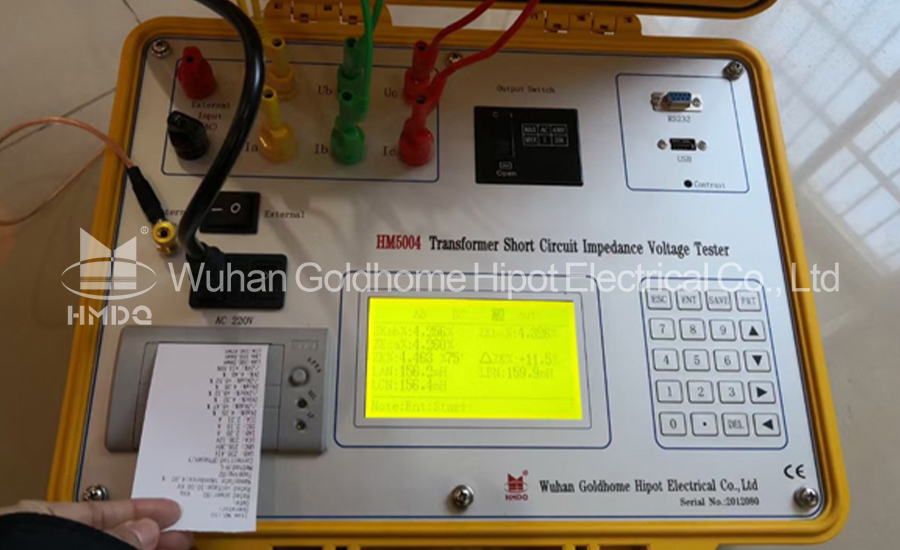

- The tester has a large LCD display with a menu in Chinese. Operation are facilitated based on the notes on the display;
- The tester enables printing and storage and is featured with high testing accuracy, high automation, small in size and light weight.
Parameter:
Range of voltage measurements:5~400V
accuracy:0.2 class
Current measurement range:0.1~20A
Power supply:AC220V±10%
power frequency:50(±1)Hz
working temperature :-10℃~50℃
Ambient humidity :≤85%RH
Host net weight:8Kg
Host measuring size:405mm*330mm*172mm
accuracy:0.2 class
Current measurement range:0.1~20A
Power supply:AC220V±10%
power frequency:50(±1)Hz
working temperature :-10℃~50℃
Ambient humidity :≤85%RH
Host net weight:8Kg
Host measuring size:405mm*330mm*172mm
