Transformer Testing System Automatic Comprehensive Multi-functional Integrated Test Bench

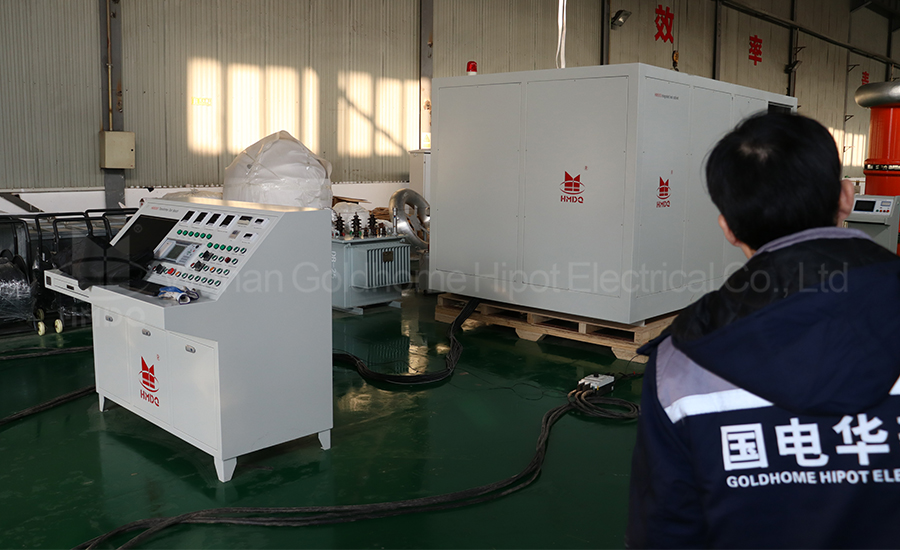

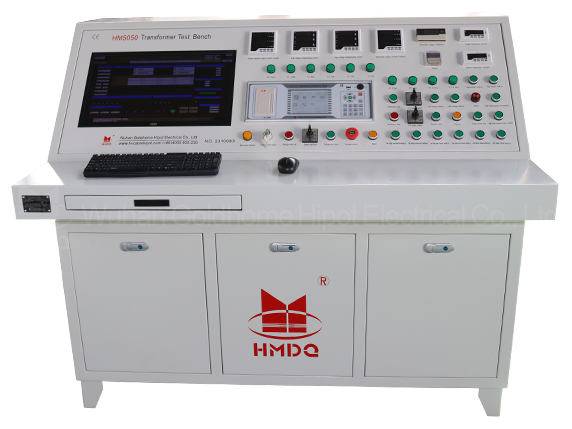

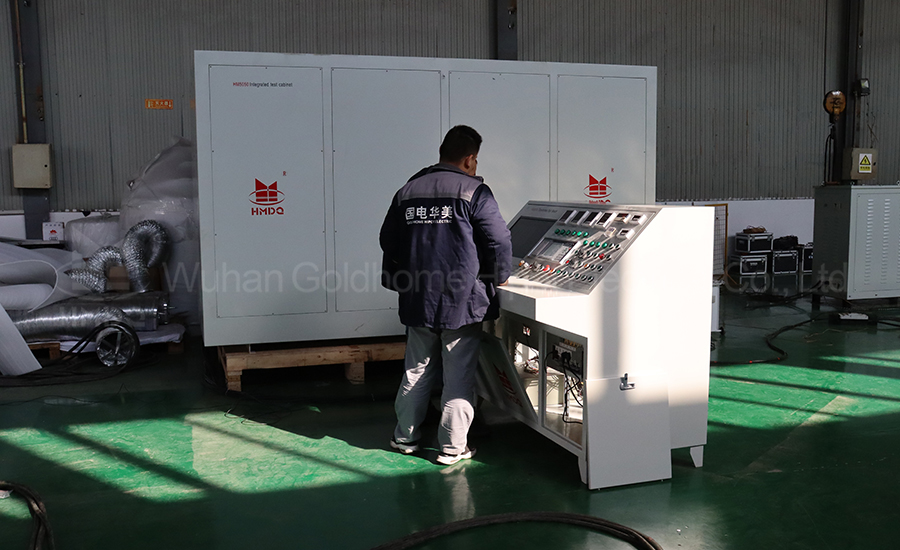

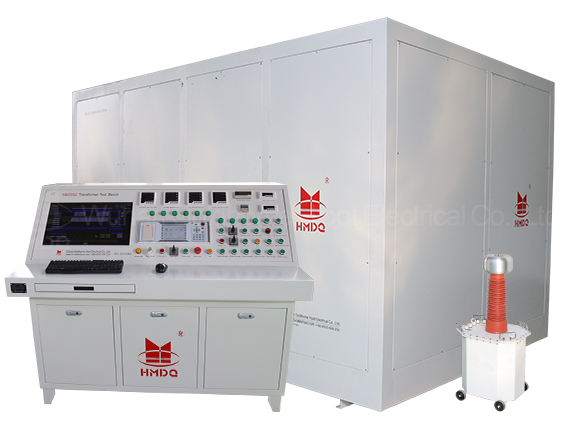

HM5050 Transformer Testing System Automatic Comprehensive Multi-functional Integrated Test Bench

(106 Reviews)

Applications:

No-load characteristic test of power transformers;
Load characteristic test of power transformers;
Short-circuit impedance test of power transformers;
Power frequency withstand voltage test of power transformers;
Induced voltage withstand test of power transformers;
DC resistance test of power transformers;
Turns ratio group test of power transformers;
Insulation resistance test of power transformers;
Oil withstand voltage test of power transformers;
Temperature rise test of power transformers;
Partial discharge test of transformers;
Sound level test;
Others:Simultaneously reserve external transformer interfaces for capacity expansion.

Transformer Testing System Automatic Comprehensive Multi-functional Integrated Test Bench

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile:

The transformer integrated test system （can be customized）can be used for comprehensive testing and detection of dry and oil transformers. The system has two operation modes (two operation modes are interlocked and can only work under one operation mode). The transformer integrated test bench has a button operation mode and a microcomputer operation mode. This operation mode can be completed by clicking the mouse on the computer display. All operations are executed by the system PLC to start its command execution unit to complete the test. In addition, the system is also equipped with a video monitoring system to monitor its test area, making it safer and more reliable. The system integrates test one-time wiring, test control, monitoring, measurement, protection, display, data acquisition, analysis and processing, measurement control, storage, printing, protection into one. The entire test process is automatically completed, with outstanding advantages of high efficiency and high precision.

Reference standards:
Test Transformer (JB/T 9641-2022)
Guidelines for Testing Power Transformers (JB/T 501-2021)

Features:

The system provides two sets of operation modes(microcomputer operation mode and button operation mode),and the two operation modes are interlocked with each other;
The system is composed of two independent systems（Higher voltage levels can be customized）：
10kV system：

Complete no-load,load,power frequency and induction tests for transformers with a capacity of 10k and below 2500kVA

35kV system：

Complete no-load,load,power frequency,induction and temperature rise tests for transformers with a capacity of 2500kVA and below at a voltage of 35k
Monitoring of necessary parameters such as input power voltage,input current,test voltage,and test current;
The switching operation of voltage and current ranges for no-load and load tests is interlocked,and when one range is engaged,other range operations are invalid.The current range needs to be reset before using other ranges;the same is true for voltage ranges;
Perfect overvoltage/overcurrent protection mechanism,effectively protecting equipment and tested objects;
Input/output control of the intermediate transformer;
In the microcomputer mode,only the mouse is required to be clicked to operate external devices such as the voltage regulator and transformer range switch.To prevent misoperations,button operations are automatically disabled in this mode of operation.

Parameter:

Configuration list：（Support customization）

Number	Device Name	Specification and model	Quantity	Remarks
1	Transformer comprehensive testing system	HMTTS-Ⅱ	1	On the integrated platform of the temperature inspection instrument, the PLC adopts Mitsubishi, and the temperature inspection instrument adopts Hongrun NHR-8100

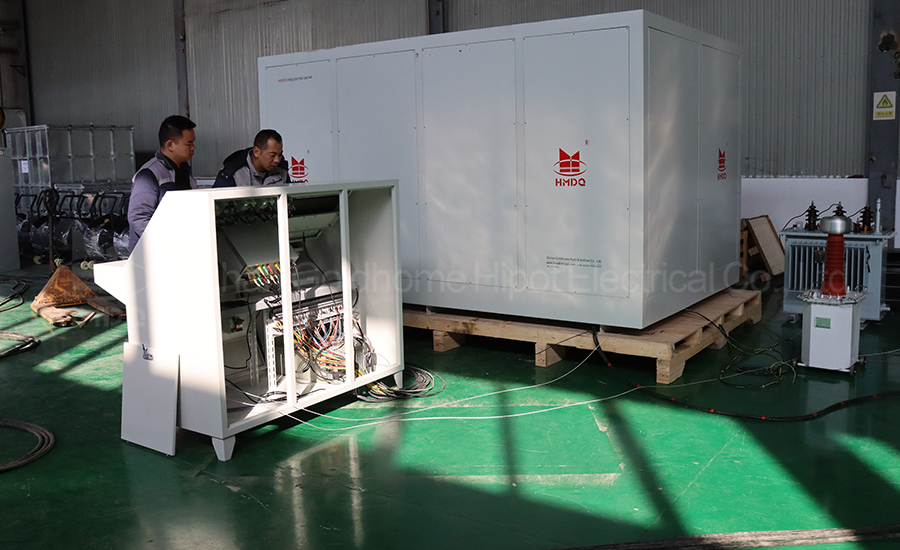

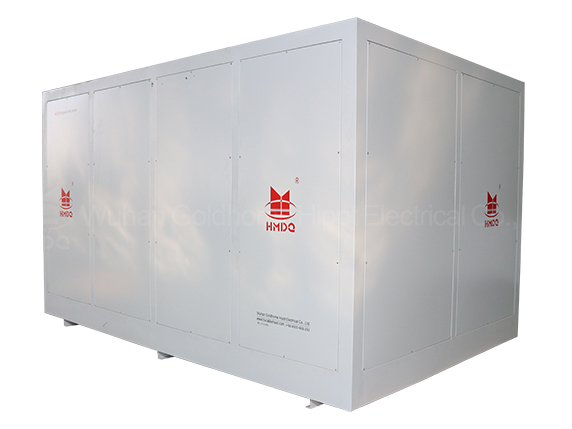

2	Power metering cabinet	HMTTS-JL	1	Built in voltage and current transformers, contactors
3	Frequency doubling generator set	HMZF-40kVA	1
4	Fully automatic ratio group tester	HMBC-Ⅵ	1
5	Power analyzer	HMBCT-6000	1
5	Transformer characteristic tester	HMBTC-Ⅲ	1
6	Transformer DC resistance tester	HMZR-10A	1
7	Transformer DC resistance tester	HMZRS-20A	1	Dual channel temperature rise test dedicated

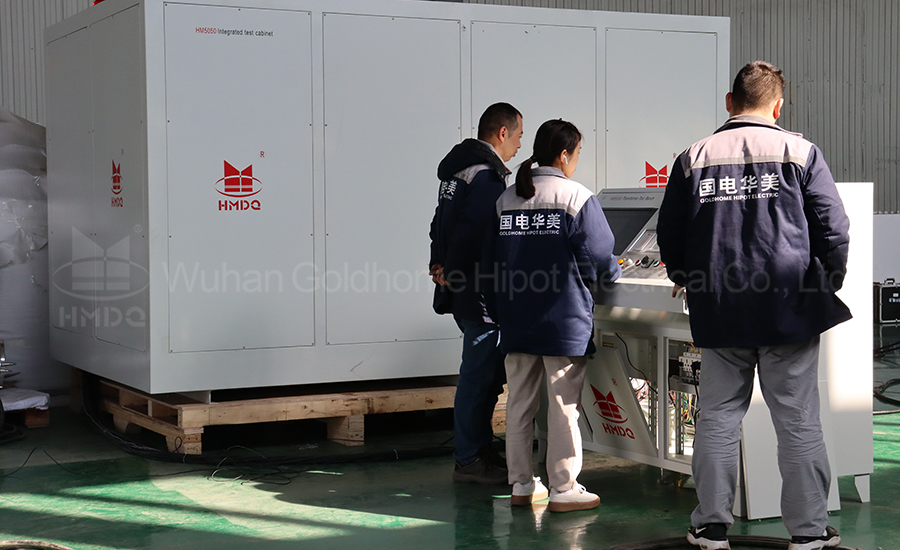

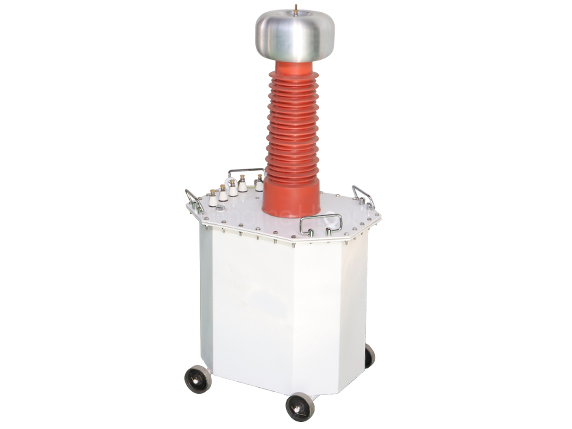

8	Test transformer with Partial discharge	HMYB-15kVA/100kV	1	Independent 15kVA electric voltage regulator
9	Industrial computers and software	HM2020	1	Industrial computer
10	Partial discharge detection system	HMJF	1	Including power filter, coupling capacitor, and partial discharge instrument
11	Installing cables
12	Induction voltage regulator	200kVA
13	Intermediate transformer	200kVA
