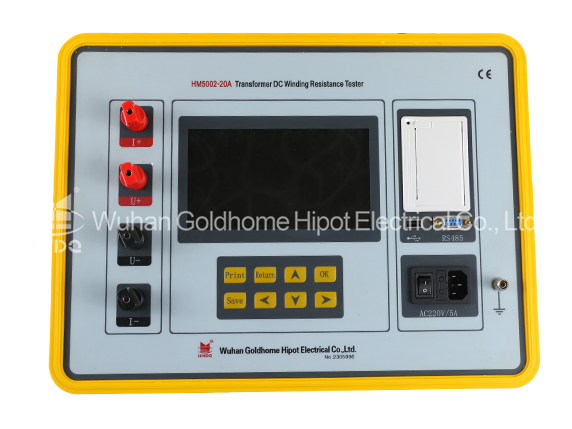

HM5002-20A Transformer DC Winding Resistance Tester

  • (106 Reviews)

Applications:

Transformer DC Winding Resistance Tester it is a mandatory test item for semi-finished products and finished products in transformer manufacturing, installation, handover test and preventive test of the power sector, which can effectively find manufacturing defects and hidden dangers after operation such as material selection, welding, loose connection parts, lack of strands, and broken wires of transformer coils.
  • pictures Strictly FAT Test
  • pictures Third-party Calibration
  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

Transformer dc resistance is transformer manufacturing of semi-finished products, finished products testing, installation, commissioning test and power sector preventive test will measure project, can effectively find the transformer coil material selection, welding, loose connection parts, short, break the blemish such as manufacturing and running after the existence of hidden dangers.In order to meet the needs of transformer dc resistance rapid measurement, it has developed a new generation of CT series dc resistance tester.

Features:

  1. Using high precision electronic measuring technology and high-performance single chip microcomputer, makes the instrument has high measurement precision and numerical stability,good repeatability.
  2. Instrument can choose appropriate according to the load current,the current gear, the biggest can output 10A current.
  3. With printing,storage,real-time view the data,and other functions.
  4. Big screen display,menu operation,friendly interface,be clear at a glance,convenient operation.
  5. Micro printer for thermal printer,speed,the surface can be installed directly printing paper.
  6. With audible alarm automatic discharge and discharge instructions,and other functions.

Parameter:

1. output Current: 1A, 2.5A,5A,10A,20A
2. Test range:
- 100µΩ-1KΩ   (20A)
- 200µΩ-2Ω     (10A)
- 1mΩ-4Ω        (5A)
- 2mΩ-8Ω        (2.5A)
- 10mΩ-20Ω    (1A)
3. Resolution:0.1µΩ
4. Accuracy: :±0.2%
5. Power supply:AC220V±10%,(50±1)HZ
6. Operation condition:-10~50℃ Humidity <90% No condensation.
