HM5050 Automatic Integrated Transformer Test Bench Comprehensive Multi-functional Transformer Testing System
Applications:
- No-load characteristic test of power transformers;
- Load characteristic test of power transformers;
- Short-circuit impedance test of power transformers;
- Power frequency withstand voltage test of power transformers;
- Induced voltage withstand test of power transformers;
- DC resistance test of power transformers;
- Turns ratio group test of power transformers;
- Insulation resistance test of power transformers;
- Oil withstand voltage test of power transformers;
- Temperature rise test of power transformers;
- Partial discharge test of transformers;
- Sound level test;
- Others:Simultaneously reserve external transformer interfaces for capacity expansion.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Features:
- 15.6 inch LCD touch screen display, man-machine interface, Mitsubishi PLC control, can print test data.
- High precision sensor, Mitsubishi high performance AD analog module, resolution up to 32000.
- Automatic and manual current-up test are optional, flexible and simple operation.
- Real-time display of power voltage, power current, output voltage and current, test time, etc.
- Perfect over-current protection.
- The output current can be adjusted by setting the three-phase average value arbitrarily.
- With back zero detection function, test can be carried out after back zero is confirmed, safe and reliable.
- Automatically current withstand timing after reaching the target output current. The current can be adjusted automatically during timing process ,to ensure test current is within required range.The voltage regulator motor returns to zero automatically after timing over.
Parameter:
|
Serie |
Device name |
Product model |
Number |
Note |
|
Part 1 ：Main console body |
||||
|
1 |

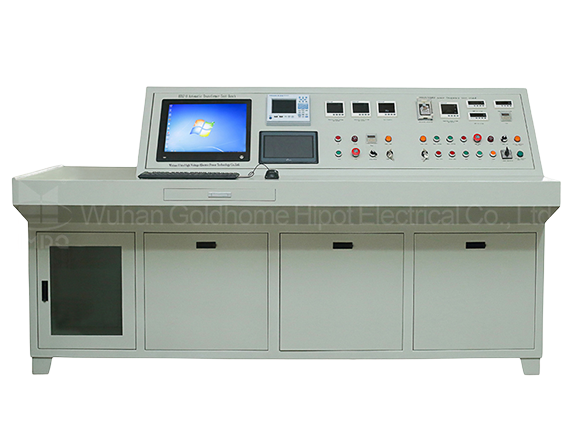

Automatic test system integrated console |
HMBZ-H |
1 unit |
|
|
Low voltage compensation auxiliary control cabinet |
HMBZ-H |
1 unit |
Containing Compensation Device |
|
|
Fully automated test software system |
HM-C |
1 set |
||
|
Industrial computer and printer |
Integrated machine |
|||
|
Part 2 ：Transformer characteristic test |
||||
|
2 |
Transformer power analyzer |
HMTPA-101 |
1 unit |
|
|
Induction electric voltage regulator |
HMTY-100kVA/10- 700V |
1 unit |
||
|
Part 3 ：Test Instruments |
||||
|
3 |
Automatic Turn Ratio Grouping Tester |
HMBC-V |
1 unit |
|
|
Part 4 ：Power Frequency Voltage and Inductive Voltage Test |
||||
|
4 |
AC test transformer |
GTB-20kVA/100kV |
1 set |
|
|
5 |
Intermediate Frequency Generator Set |
HMFDJ-20kVA |
1 set |
|
|
Part 5 ：Temperature rise test |
||||
|
6 |
Dual-Channel Temperature-Rising DC Resistance Tester |
HMZZ-20W |
1 unit |
|
|
7 |
Temperature Patrol Instrument |
HMXJ-16 |
1 unit |
|
|
Temperature probe |
TP100 |
10PCS |
||
|
Temperature rise cabinet |
HMFX-16 |
1 unit |
||
|
Configuration for 35kV Test |
||||
|
1 |
High Voltage Test Auxiliary Control Cabinet |
HMBZ-H |
1 unit |
|
|
2 |
Characteristic and Frequency Induction Boost Intermediate Transformer |
250kVA 0.6/2 kV 3.5kV |
1 unit |
|
|
3 |
High Voltage Standard Current Transformer |
HMHL-400A |
3 units |
Accuracy level 0.05 |
|
High Voltage Standard Current Transformer |
HMHJ-4kV |
3 units |
Accuracy level 0.05 |
|
Spare parts
|
Serie |
Product name |
Specification type |
Unit |
Number |
Explain |
Price |
|
1 |
Test cable |
95 squares |
meter |
120m |
Test cable |
Self-provided |
|
2 |
High Voltage Test Cable |
50 squares |
meter |
50m |
Test cable |
Self-provided |
|
3 |
On-site debugging of cables |
95 squares |
meter |
Self-provided |
||
|
4 |
High current test clamp |
300A |
pcs |
3 |
Free |
Free |
|
5 |
Electric Voltage Regulator Control Connection |
10 cores |
pcs |
1 |
Free |
Free |
|
6 |
Digital Thermo-hygrometer |
pcs |
1 |
Free |
Free |

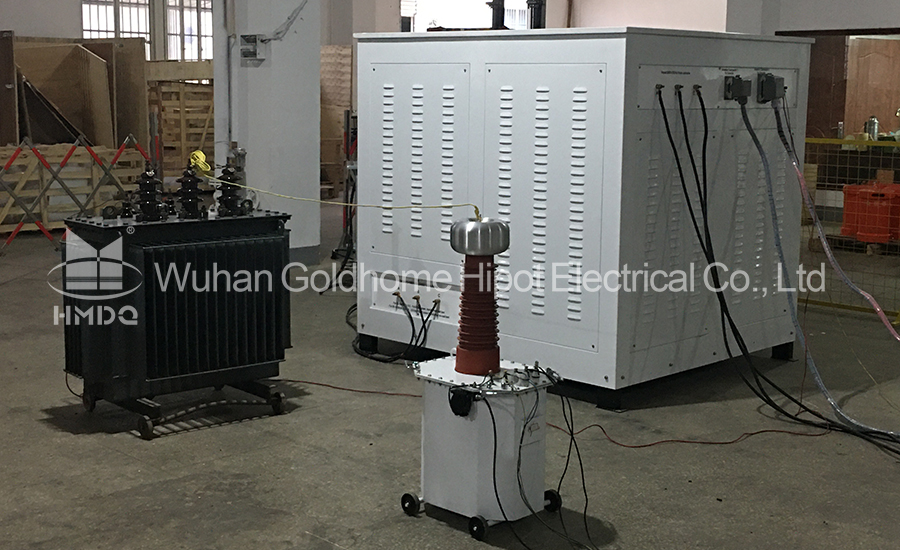

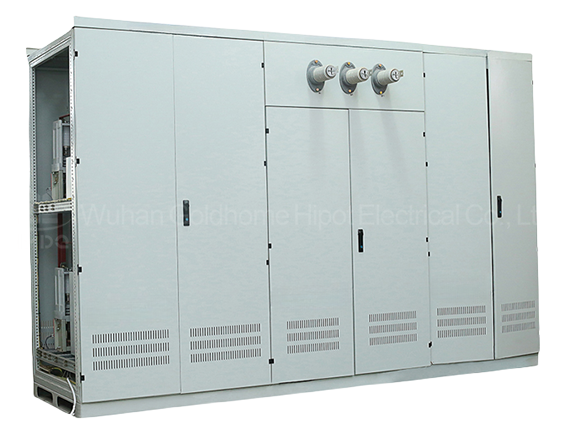

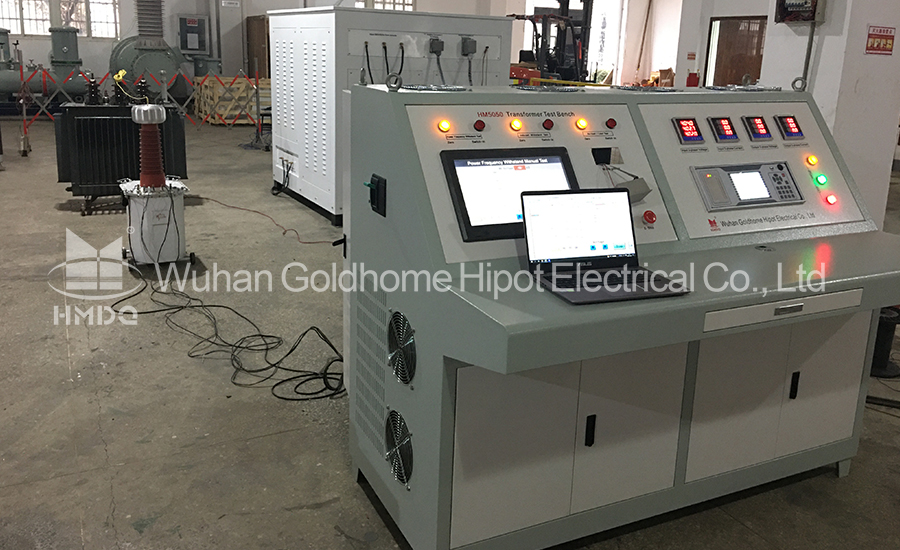

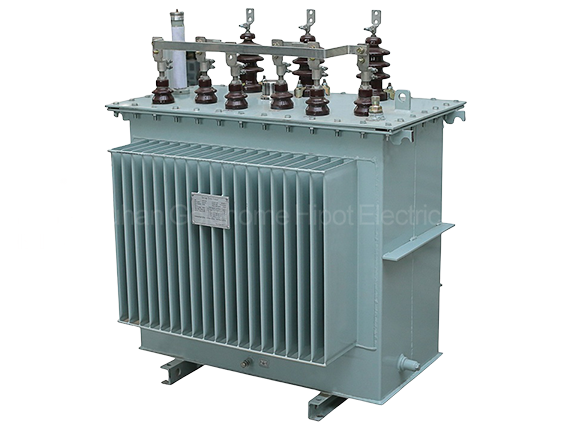

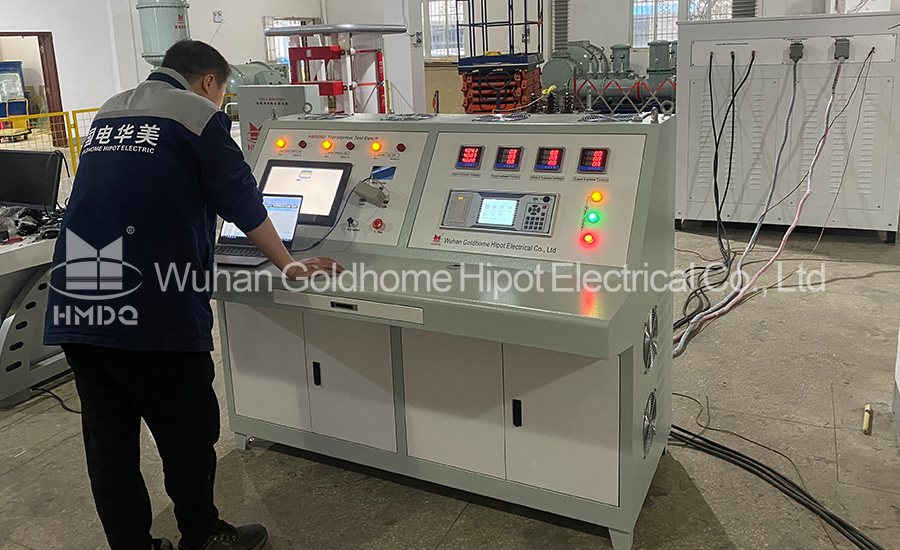

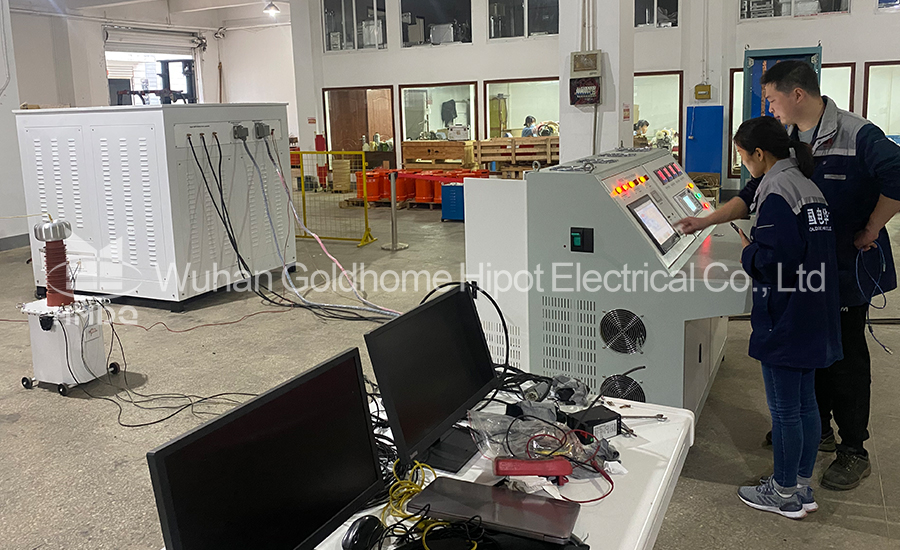

Pictures:
